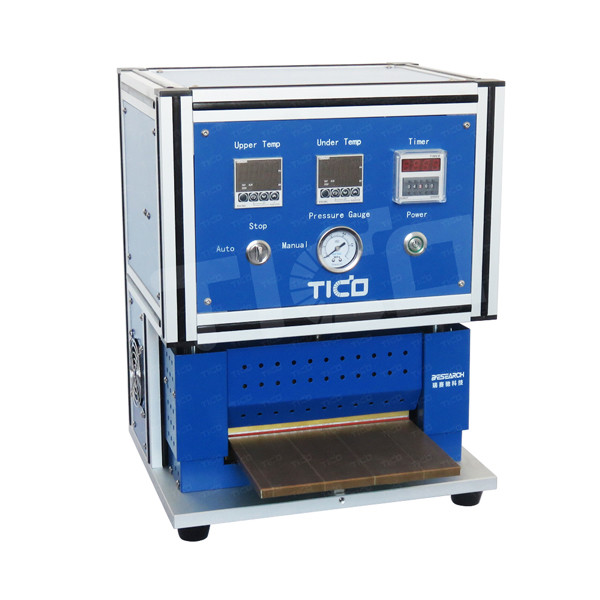

Pouch Cell Aluminun Laminated Case Top & Side Heat Sealing Machine for Lab R&D
Brief Introduction
STC-BRF-G200 is a hot sealing machine, mainly used for pouch cell aluminum cup edges with tabs before electric liquid filling process. The sealing head is made of copper with a godd heating conduction, the heating temp of upper and lower sealing head was controlled separated and can be setable.
Features
● Upper and lower sealing head temperature can be controlled separated, temperature is adjustable and digital display by thermostat.
● Sealing head is made of copper with a good heat conduction.
● Pressure gauge is embedded and easy to che the sealing pressure.
● Firmly sealing.
● Within the safety protection cover to avoid scalding.
● Sealing time can be adjusted by timer.
● The sealing blade length is 200mm, battery case < 200mm can be used without replacing sealing blade.
Technical Parameters
| Model |
STC-BRF-G200 |
| Working voltage |
AC110V/220V optional |
| Sealing blade length |
200mm, customized size is available |
| Sealing balde width |
5mm, customized size is available |
| Upper sealing blade temperature |
Room temperature~300℃ adjustable, 200℃ is suggested |
| Lower sealing blade temperature |
Room temperature ~300℃ adjustable, 180℃ is suggested |
| Sealing time |
2~3s, 0~99s settable |
| Sealing pressure |
0.5~0.7Mpa |
| Power |
1000W |
| Dimension |
L320 * W320 * H500mm |
| Weight |
40kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
